MinimOSD english support thread (записей: 29)

  • Аватар профиля Night_Ghost Night_Ghost287 пунктов в 7 г., 5 мес. назад

    Here I will answer questions on my OSD firmware.

  • Аватар профиля tabascoz tabascoz в 7 г., 5 мес. назад

    Hello Night Ghost,

    Just dropping a note to say Hi from Brazil. I do hope the development continues. Cheers, Tabascoz

  • Аватар профиля Night_Ghost Night_Ghost287 пунктов в 7 г., 5 мес. назад

    Thanks!

  • Аватар профиля kiosk kiosk в 7 г., 5 мес. назад

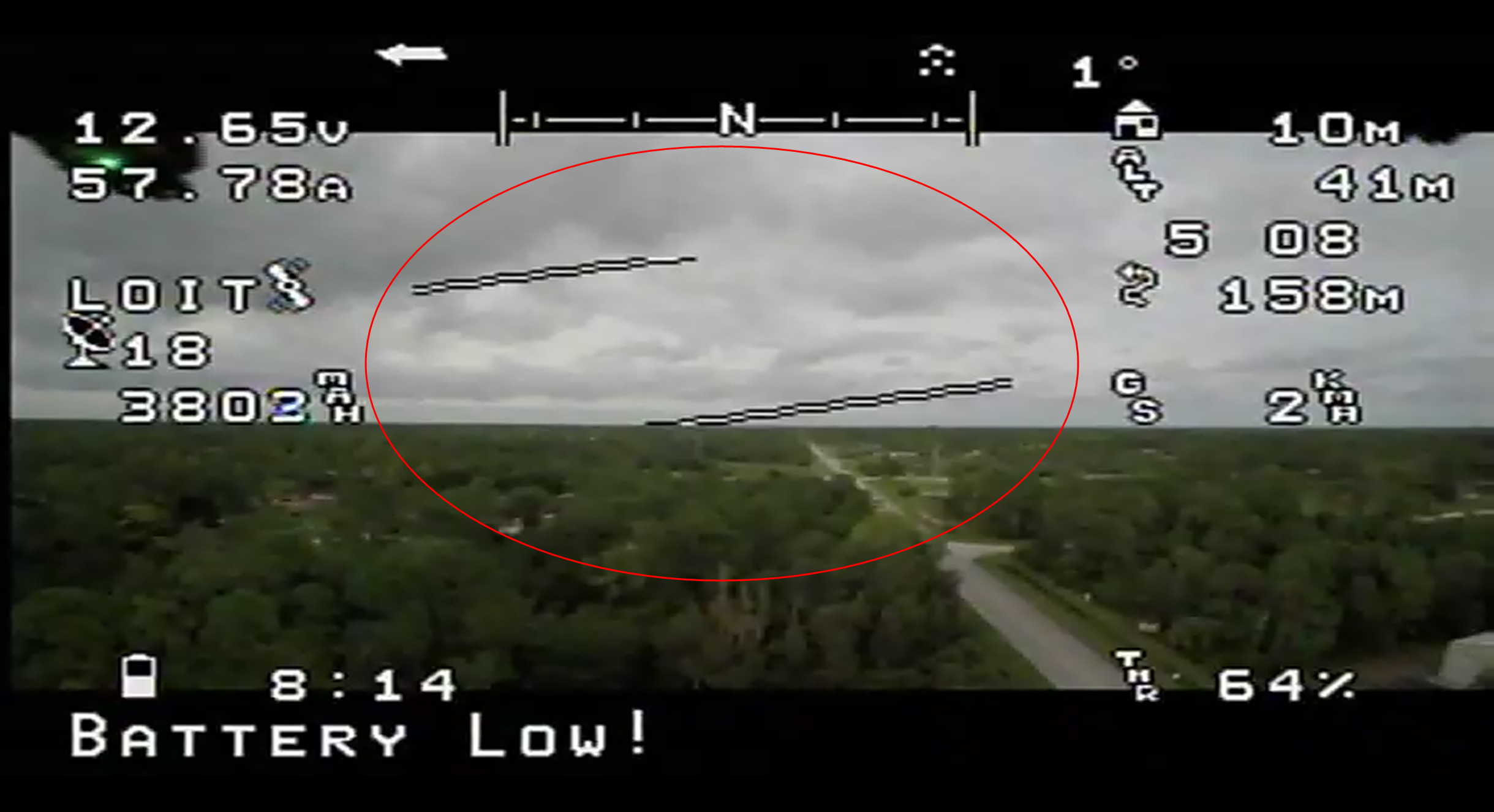

    hi night_ghost....miss you over in RCG but hey whatever works....I loaded the latest on my minimosd (v888) but still on the horizon line it gets skewed and split in half when I bank roll, do you know why this happening?  also I still cannot get any value other than zero for 3DR modem RSSI using mavlink. thanks a lot!





  • Аватар профиля Night_Ghost Night_Ghost287 пунктов в 7 г., 5 мес. назад

    Issue with 3DR RSSI is in work, to answer about horison i need also .OSD file and TLOG to reproduce the problem.

  • Аватар профиля kiosk kiosk в 7 г., 5 мес. назад

    ok I saw why you were asking for that and always wanted to try that TLOG replay feature I saw on the windows app....so I replayed the TLOG file via the app to the OSD and duplicated it, all I had to do was reposition the horizon box and voila! problem fixed!!!    thanks nigh_ghost!!!

  • Аватар профиля Night_Ghost Night_Ghost287 пунктов в 7 г., 5 мес. назад
    [2016-10-11 22:11:58] kiosk писал(а): to try that TLOG replay feature I saw on the windows app

    Yes you are absolutely right, if the problem does not occur with my setup there is no other way to fix it.

  • Аватар профиля Night_Ghost Night_Ghost287 пунктов в 7 г., 4 мес. назад

    v902

    * added ability to change show time for messages

  • Аватар профиля Night_Ghost Night_Ghost287 пунктов в 7 г., 4 мес. назад

    903

    * fixed bug with vario zero position

  • Аватар профиля Night_Ghost Night_Ghost287 пунктов в 7 г., 4 мес. назад

    v904

    • fixed bug with message time
  • Аватар профиля Night_Ghost Night_Ghost287 пунктов в 7 г., 3 мес. назад

    v905

    •  fixed NTSC horizon bug
    •  added checkbox in RadarScale to select UAV arrow direction



    v906

    •  fixed AutoBaudRate
    •  optimized EEPROM usage



    v907 - TEST VERSION!

    • removed usage of nested interrupts



    v908

    • added support for boards without connected VSYNC



    v909

    • fixed bug with MAVlink message



    v910 - THE TEST VERSION!!!

    * a try to work on myairbot's board



    v911 - THE TEST VERSION!!!

    * another try to work on myairbot's board and not spoil regular boards



    v912

    • added NMEA protocol - now this firmware can be used without any FC



    v913

    • added new panel - motors output
    • fixed last CT bugs
  • Аватар профиля Alex135 Alex135 в 7 г., 3 мес. назад

    Пересматривал видео технички вчерашней, возник вопрос есть такая фишка направление домой что то там не так все чисто, получилось показывает неправльно чуть не заблудился, стал водить меня по кругу и медленно отрабатывает.

    прошивка 906

  • Аватар профиля Night_Ghost Night_Ghost287 пунктов в 7 г., 3 мес. назад

    1. А почему в English Support?

    2. Нужен TLOG

    3. Есть ли арминг? Какой GPS?

  • Аватар профиля Night_Ghost Night_Ghost287 пунктов в 7 г., 3 мес. назад

    v914

    • separated panels for coordinates Lat and Lon



  • Аватар профиля Night_Ghost Night_Ghost287 пунктов в 7 г., 2 мес. назад

    v915

    • fixed bug with font uploading
    • HomeAlt can use alternate altitude source
